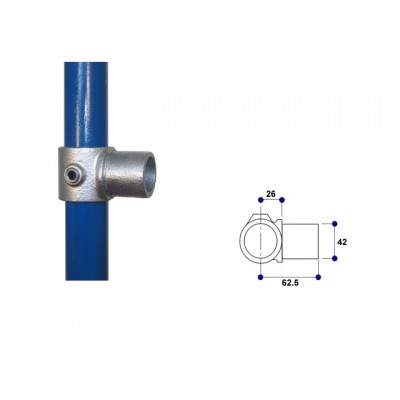

The Internal Swivel Tee is a versatile fitting that is often used on slopes and staircases when the angle either varies or is unknown, and/or where there is a requirement for rails to be offset from the uprights.
Dimensions shown are in millimetres.
The tube cannot be joined within the fitting and must be continuous.
These parts are often used with Short Tee Connector (JWICL101) and 90 degrees Elbow (JWICL125).
This part is from the incredibly versatile range of galvanised malleable iron slip-on pipe and tube fittings produced by Interclamp.
They allow for quick and easy construction of different types of structures with the use of a simple hexagon key, rather than any complicated fixings.
Typically, these parts are used to construct hand rails and safety guardrails, but they are also suitable for a huge range of other structures such as playground equipment, shop fitting, sports practice nets, greenhouses, exhibition stands, wheelchair access ramps, and much more.
- Size: C42
- Dimensions: 26mm (a) 62.5mm (b) 42mm (c)
- Weight (kg): 0.46
- Interclamp 147
