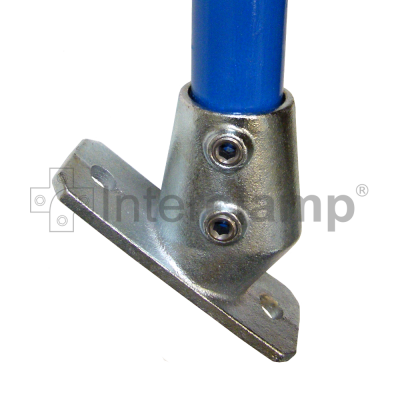

Base flange for sloping sites, adjustable from 30 degree to 45 degree. As the fixing holes in the base cannot be fixed in line with the applied load, it is only intended for light loads or structures which are sufficiently supported by virtue of their design. Where a greater load is required,type 132is normally used, with the upright tube bent to the required angle. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request. The dimensions of the base are designed to be compatible with many traditional welded ball standard bases to allows easy interchangeability.
- Size: C42
- Dimensions: 172mm (a) 65mm (b) 126mm (c)
- Weight (kg): 1.23
- Interclamp 251
