This single swivel combination fitting is a versatile single joint that is useful for awkward applications where angles cannot be accommodated with the adjustable angle fittings.

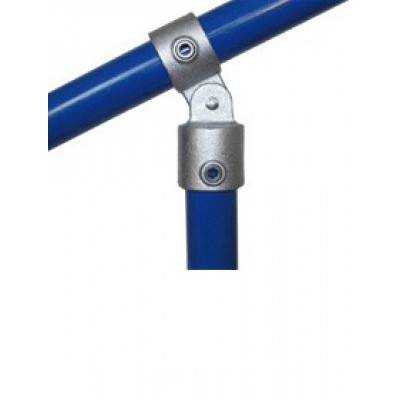

The through tube, that is shown as the sloping tube in the image, should be continuous as it cannot be joined within the fitting.
The swivel fittings are riveted together using M10 x35mm bolts, but the parts can also be supplied separately as isingle Swivel Combination Female Part and Single Swivel Combination Male Part.
Warning: Swivel fittings alone should not be used for entire structures as they do not offer sufficient stability.
Dimensions shown are in millimetres.
This part is from the incredibly versatile range of galvanised malleable iron slip-on pipe and tube fittings produced by Interclamp.
They allow for quick and easy construction of different types of structures with the use of a simple hexagon key, rather than any complicated fixings.
Typically, these parts are used to construct hand rails and safety guardrails, but they are also suitable for a huge range of other structures such as playground equipment, shop fitting, sports practice nets, greenhouses, exhibition stands, wheelchair access ramps, and much more.

• Size: B34
• Dimensions: 61mm (a) 104.5mm (b)
• Weight (kg): 0.64
• Interclamp 173
