Interclamp 146-D48 - Side Palm

SKU: JWGI146D48

Brand: Interclamp

146 - Side Palm
Excl. Tax: £9.46 Incl. Tax: £11.35
Description

Details

A palm-type rail fitting, frequently used to attach guardrail uprights to things such as walls, ramps and staircases.

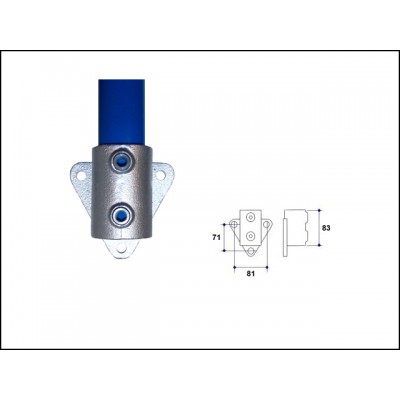

Dimensions shown in image are in millimetres.
The flush design enables posts to be tight to the structure.
This item is supplied in standard form, so the tube cannot pass through the bottom of the fitting. However, this fitting can be modified to accommodate the tube passing through it on request, at extra cost (please contact us for more information).
This part is from the incredibly versatile range of galvanised malleable iron slip-on pipe and tube fittings produced by Interclamp.
They allow for quick and easy construction of different types of structures with the use of a simple hexagon key, rather than any complicated fixings.
Typically, these parts are used to construct hand rails and safety guardrails, but they are also suitable for a huge range of other structures such as playground equipment, shop fitting, sports practice nets, greenhouses, exhibition stands, wheelchair access ramps, and much more.
A palm type fitting, often used to attach guardrail uprights to walls, staircases and ramps.
In standard form, the tube cannot pass through the bottom of the fitting, although the fitting may be modified to accommodate this at an extra cost (with loss of use of the bottom bolt hole).
  • Size: D48
  • Dimensions: 86mm (b) 79mm (c) 10mm (hole dia)
  • Weight (kg): 0.84
  • Interclamp 146
